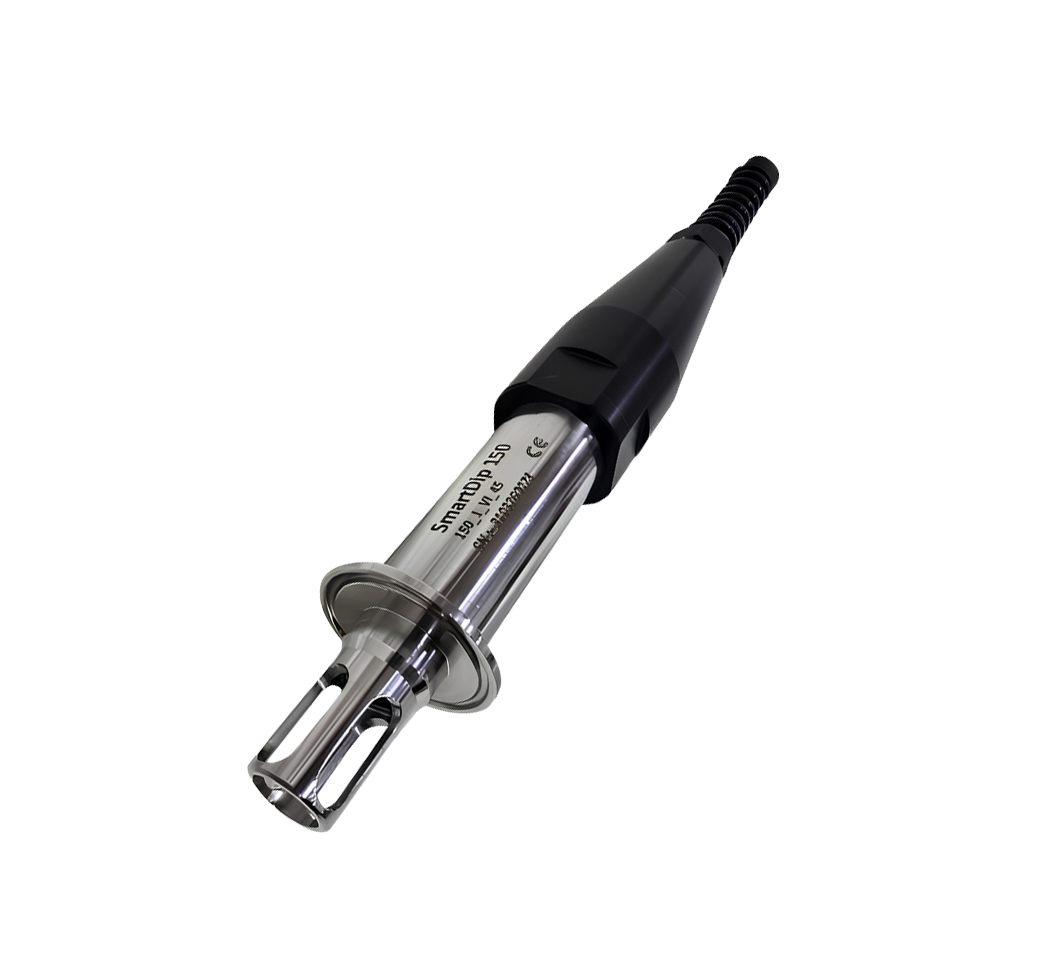

SmartDip 150M & 155M — Static Electrode Fitting, Triclover

DynamicPE SmartDip 150M and 155M are static electrode housings with ISO and DIN standard Triclover process connections, suited for vessels and processing equipment in food, beverage, and dairy environments. Available in two immersion lengths — 45 mm and 80 mm — the housings accommodate a wide range of vessel wall thicknesses and installation geometries. The SmartDip 155M extends Triclover compatibility to larger diameter fittings (ISO DN40 / DIN DN50).

Key Features:

• Machine-finished SS316L body with surface finish Ra < 0.3
• SmartDip 150M process connections: ISO DN25/32, DIN DN25/32/40 Triclover
• SmartDip 155M process connections: ISO DN40, DIN DN50 Triclover
• Immersion lengths: 45 mm and 80 mm
• Compatible sensor: 120 mm ø12 PG13.5
• Pressure rating: 0–10 Bar
• Process temperature: up to 140 °C
• Sealing options: EPDM, FPM (Viton), FFKM (Kalrez)
• Optional sensor tip protection cage
• Applications: Bio-Pharma, Food & Beverages, Dairy Industry
