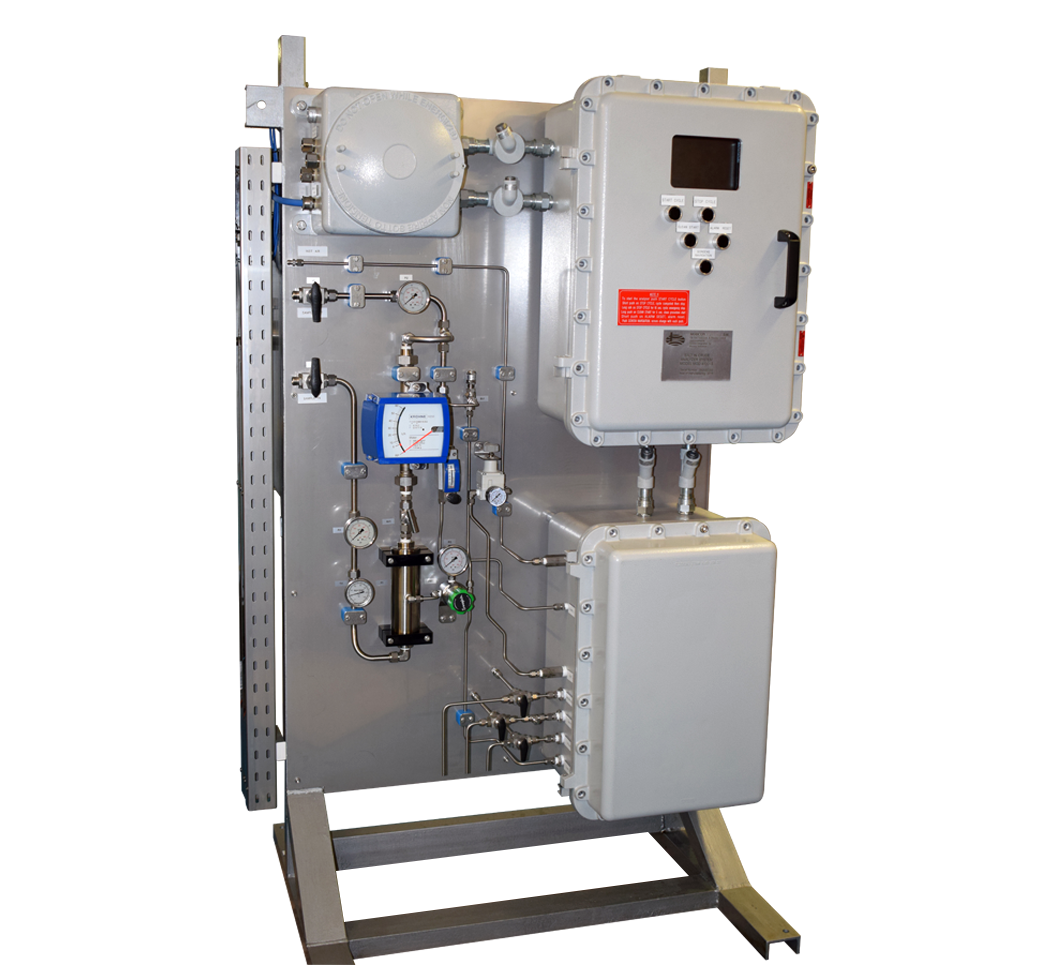

MOD-4100S On-line Salt in Crude Oil Analyzer
The MOD-4100S by Modcon Systems is designed to provide real-time analytical data of salt concentration in crude oils, based on ASTM D-3230 electrometric method — measuring conductivity when the sample is dissolved in a mixture of aromatic and alcoholic solvents.
Key Features
Accurate Salt Measurement
- Measures salt content in crude oil expressed in PTB or mg/L
- Configurable measurement range: 0-150 PTB (0-450 mg/L) or 0-400 PTB (0-1000 mg/L)
- Repeatability: ±2% full scale; correlates with ASTM D-3230
- Response time: ±6 minutes
Fully Automated Operation
- Automatic sampling, solvent dosing, mixing, measurement, and self-cleaning cycle
- Error messages displayed for any faulty status
- 7″ display; sample inlet pressure: 4-16 Bar; sample temperature: 10-60°C
- Low maintenance design with short-term ROI
Safe & Robust
- ATEX Zone 1 certified: Eex d II B+ H2 T4 Gc
- Ambient operating temperature: 5-35°C
- Available with heated or cooled enclosure for extreme ambient conditions
- Weight: 440 kg; dimensions (WxHxD): 980 x 1800 x 800 mm
Connectivity
- Output: 2 isolated 4-20 mA, free configurable
- Optional: RS485, Modbus RTU, Ethernet
- Power supply: 230 VAC, 50 Hz; power consumption: 1.3 KVA
Applications
- Crude oil refining and distillation
- Pipeline and storage quality monitoring
- Crude oil blending operations
- Upstream oil production
- Custody transfer and commercial quality verification
